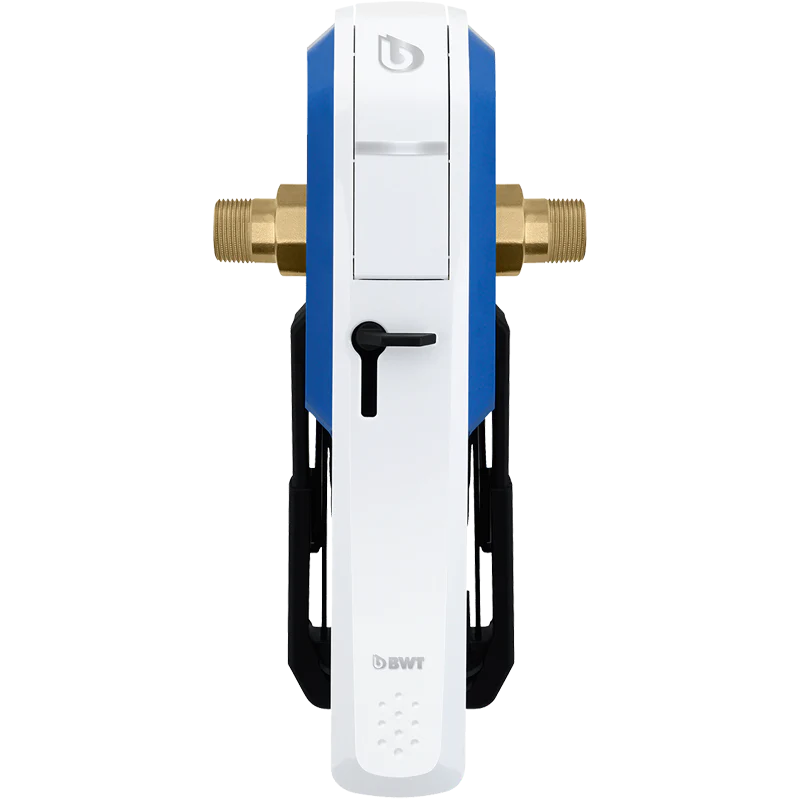

BWT E1 Single-Lever Water Filter HWS 1" | Domestic Water Station with Pressure Reducer 125596630
BWT E1 Single-Lever Water Filter HWS 1" | Domestic Water Station with Pressure Reducer 125596630
In stock
Pricing is available to registered account holders. Please sign in to your account or request access to view pricing and place orders online.
REGISTER OR LOGIN
Couldn't load pickup availability
Product Description
Product Description
BWT E1 Single-Lever Filter HWS 1" | Domestic Water Station with Pressure Reducer 125596630.
Product Overview
The BWT E1 Single-Lever Filter HWS 1" is a premium domestic water station designed to protect your home’s plumbing and appliances from rust, sand, and suspended particles. Equipped with an integrated pressure reducer, it maintains stable water flow and ensures long-term system protection. The E1’s patented single-lever design allows anyone to change the filter in under 30 seconds — no tools, no water contact, no mess.
Features & Benefits
- ✅ Quick 30-second filter change: Replace the hygiene module without tools or spillage.
- ✅ Hygienic operation: No contact with water-impacted parts during maintenance.
- ✅ Integrated pressure reducer: Protects fixtures and keeps flow consistent.
- ✅ Automatic shut-off: Water supply stops instantly during filter change.
- ✅ Food-grade materials: Produced to HACCP standards for drinking water safety.
- ✅ 10-year warranty: With registration and email filter replacement reminders.
Specifications
- Brand: BWT (Best Water Technology)
- Model / MPN: 125596630
- Product Type: Domestic Water Station / Single-Lever Water Filter
- Connection Size: 1 inch (DN25)
- Filtration Function: Removes rust, sand, and suspended solids
- Operating Pressure: 2–16 bar
- Material: Food-grade polymer housing
- Filter Change Time: < 30 seconds
- Mounting: Inline (horizontal or vertical)
- Warranty: 10 years (upon registration)
- Country of Origin: Austria
Installation Tips
- Install after the main water meter using supplied fittings.
- Allow space for lever operation and filter replacement.
- Observe the flow direction arrow during installation.
- Register the product for the 10-year warranty and email reminder service.
- Replace the hygiene module every 6–12 months depending on usage.
Technical Data
| Technical Data | EHF 3/4" + 1" | EHF 1-1/4" | HWS 3/4" | HWS 1" | HWS 1-1/4" |
|---|---|---|---|---|---|
| Connection width (DN) | 20 + 25 | 32 | 20 | 25 | 32 |
| Flow rate @ Δp = 0.2 bar (2.9 psi) | 1.6 m³/h (7.0 gpm) | 2.8 m³/h (12.3 gpm) | – | – | – |
| Flow rate @ Δp = 0.5 bar (7.3 psi) | 2.3 m³/h (10.1 gpm) | 3.6 m³/h (15.8 gpm) | – | – | – |
| Flow rate | – | – | 2.3 m³/h (10.1 gpm) | 3.6 m³/h (15.8 gpm) | 4.0 m³/h (17.6 gpm) |
| Filter mesh size | 100 µm | ||||
| Operating pressure (min/max) | 2–16 bar (29–232 psi) | ||||
| Distance pipe center to wall (min/max) | 80–120 mm (3.15–4.72 in) | ||||
| Dimensions (H × W) | 381 × 185 mm (15.00 × 7.28 in) | 399 × 218 mm (15.71 × 8.58 in) | 399 × 197 mm (15.71 × 7.76 in) | 399 × 199 mm (15.71 × 7.83 in) | 399 × 218 mm (15.71 × 8.58 in) |
Note: Actual performance varies with incoming water conditions and system layout. Use the correct DN size for your service line.
