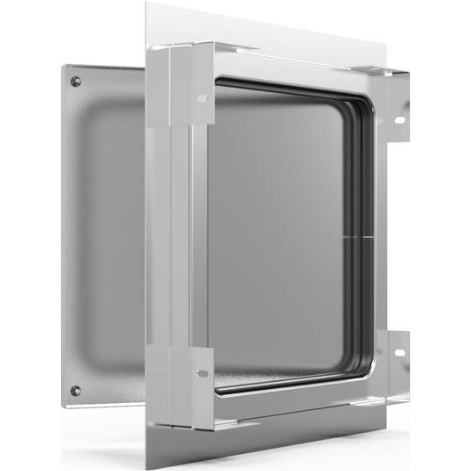

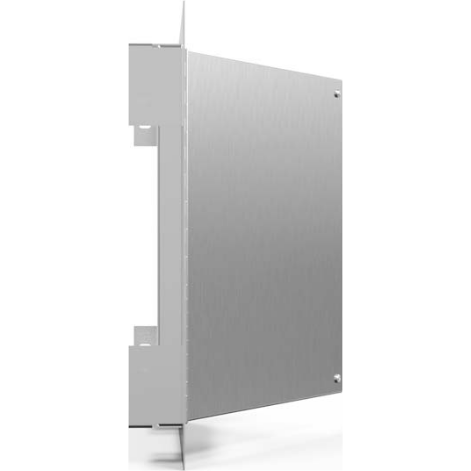

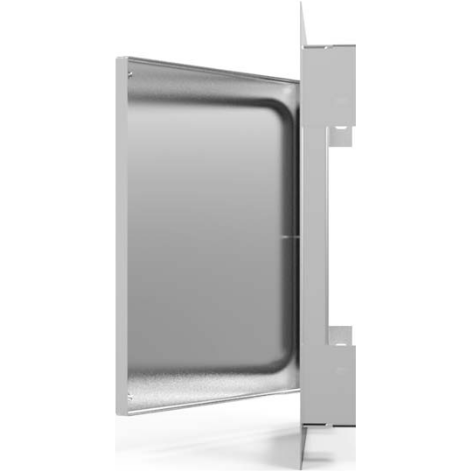

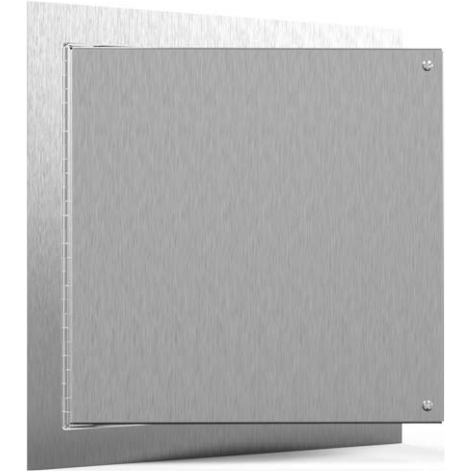

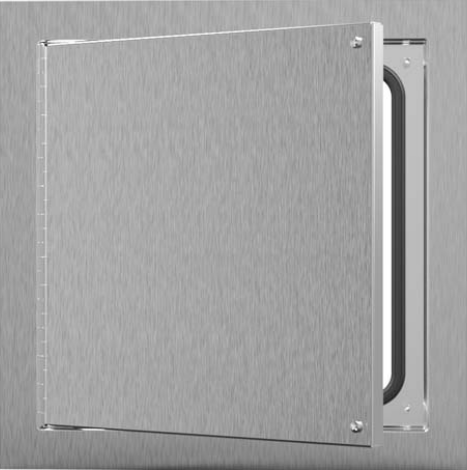

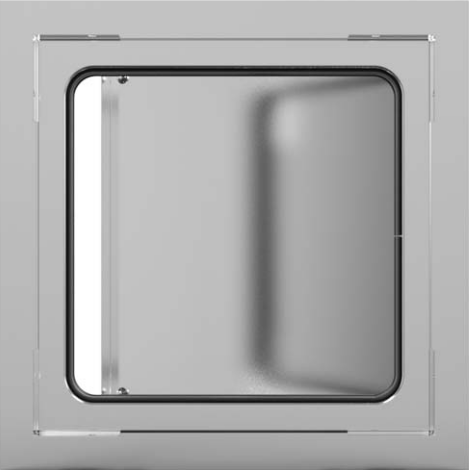

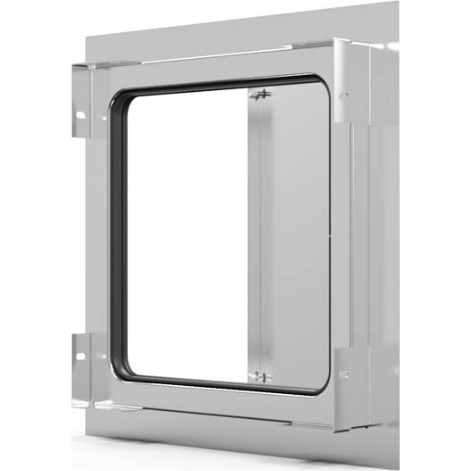

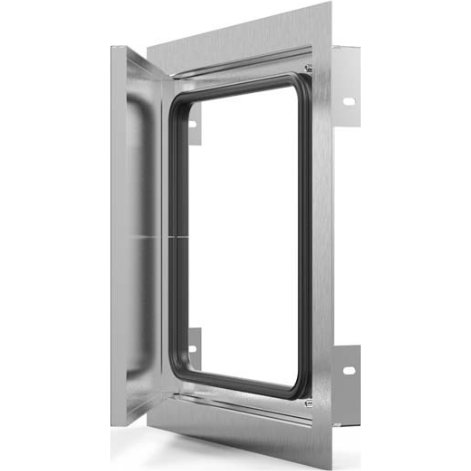

Acudor ADWT-24x24 - 24" x 24" Prime Coated Airtight / Watertight Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

• This access door is ideal for use in laboratories, clean rooms, operating rooms, etc where an airtight / watertight seal is required.

Features & Benefits:

• ADWT is a flush access door that has been tested for air infiltration and water penetration.

• Door and Frame are fully welded.
• Continuous Bulb Trim Gasket.
• Continuous Stainless Steel Piano Hinge.

• Air Infiltration: Less than 0.01 cfm/sq foot - ASTM E 283

• Water Penetration: no leakage at 15.05 psf - ASTM E 331

Door Specifications:

• Material: 16 gauge door, 16 gauge mounting frame.
• Door: Flush to frame with reinforced edges.
• Hinge: Continuous exposed stainless steel piano hinge.
• Gasket: Continuous bulb trim seal.
• Latch: Stainless Steel phillips head screw (standard)
• Optional Latches: stainless steel allen head screws, stainless steel spanner head screws, torx, cylinder lock & key.
• Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.

Technical Documentation:

Acudor ADWT Airtight / Watertight Access Door Product Page: Click Here.
Acudor ADWT Airtight / Watertight Access Door Specification Submittal: Click Here.
