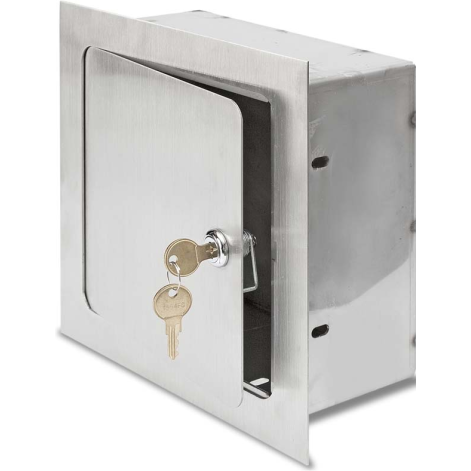

Acudor ARVB-12x12x8 - 12" x 12" x 8" Prime Coated Recessed Valve Box
Acudor ARVB-12x12x8 - 12" x 12" x 8" Prime Coated Recessed Valve Box
Pricing is available to registered account holders. Please sign in to your account or request access to view pricing and place orders online.
REGISTER OR LOGIN
Couldn't load pickup availability
Product Description
Product Description

Acudor ARVB-12x12x8 - 12" x 12" x 8" Prime Coated Recessed Valve Box
Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com
Application:
- Provides easy access to all types of valves and controls that need to be concealed in the wall, but protected by a fully enclosed box.
Features & Benefits:
- The depth of the valve box can be modified to meet all the valve and control requirements.
- When required, vision panels, louvers, engrave plates can be supplied, along with special hole for pipes or conduits.
Door Specifications:
- Material: 16 gauge door, 16 gauge mounting frame, 16 gauge box.
- Door: Flush to frame with rounded safety corners.
- Frame: One piece outer flange welded to box.
- Box: Fully enclosed, completely attached to frame. When required the box can be made with an open back.
- Hinge: Continuous, concealed.
- Gasket: Continuous bulb trim seal.
- Latch: Cylinder lock & key (standard)
- Optional Latches: screwdriver operated cam latch, spanner head cam latch, flush paddle handle, thumb turn latch.
- Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.
Technical Documentation:
Acudor ARVB Recessed Valve Box Product Page: Click Here.
Acudor ARVB Recessed Valve Box Specification Submittal: Click Here.
