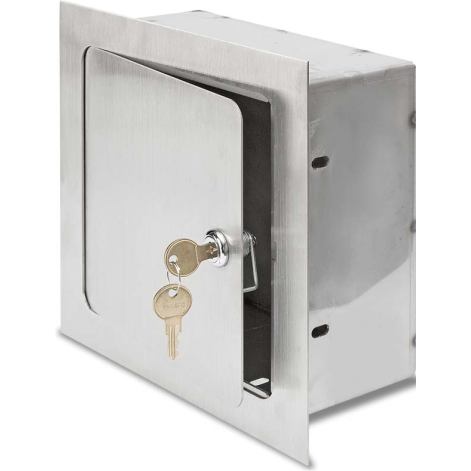

Acudor ARVB-8x8x8 - 8" x 8" x 8" Prime Coated Recessed Valve Box

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

• Provides easy access to all types of valves and controls that need to be concealed in the wall, but protected by a fully enclosed box.

Features & Benefits:

• The depth of the valve box can be modified to meet all the valve and control requirements.

• When required, vision panels, louvers, engrave plates can be supplied, along with special hole for pipes or conduits.

Door Specifications:

• Material: 16 gauge door, 16 gauge mounting frame, 16 gauge box.
• Door: Flush to frame with rounded safety corners.
• Frame: One piece outer flange welded to box.
• Box: Fully enclosed, completely attached to frame. When required the box can be made with an open back.
• Hinge: Continuous, concealed.
• Gasket: Continuous bulb trim seal.
• Latch: Cylinder lock & key (standard)
• Optional Latches: screwdriver operated cam latch, spanner head cam latch, flush paddle handle, thumb turn latch.
• Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.

Technical Documentation:

Acudor ARVB Recessed Valve Box Product Page: Click Here.
Acudor ARVB Recessed Valve Box Specification Submittal: Click Here.
