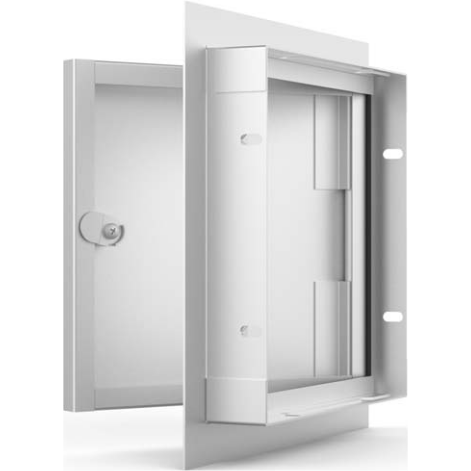

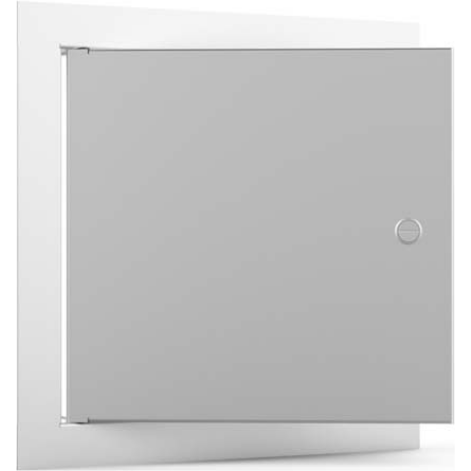

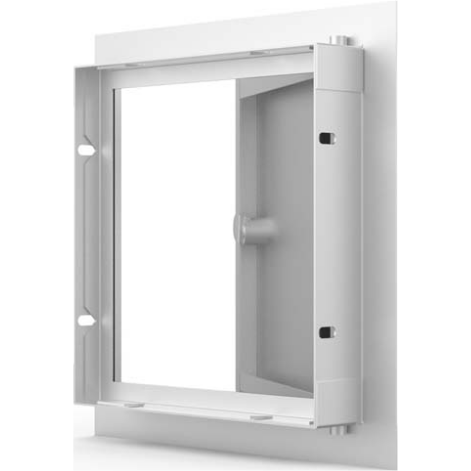

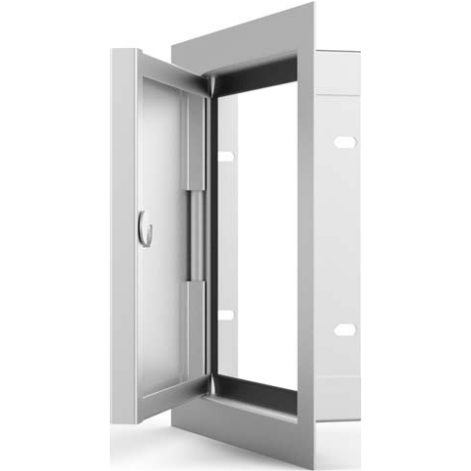

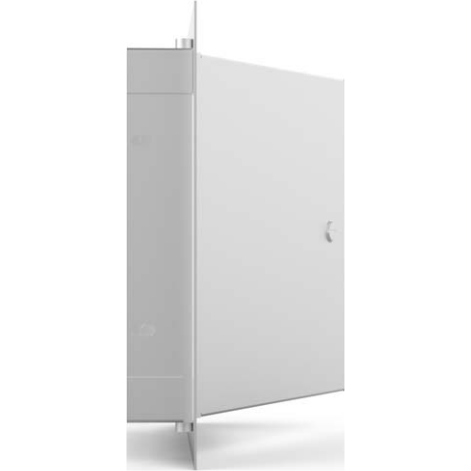

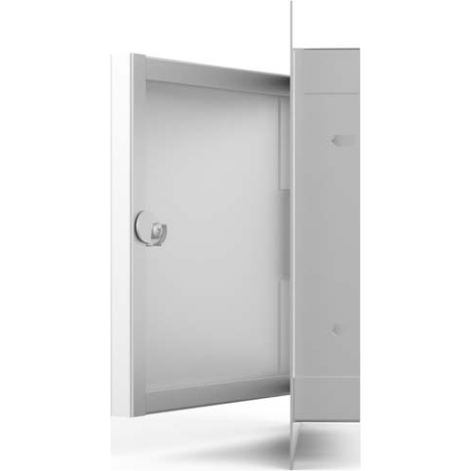

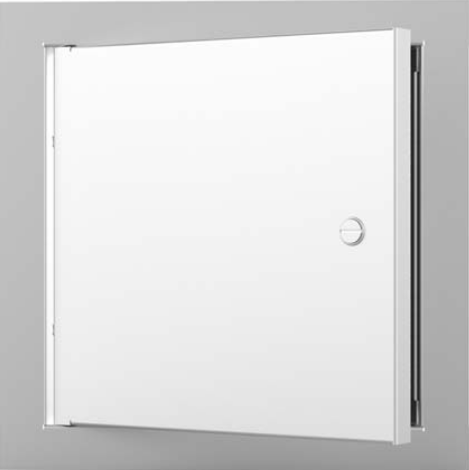

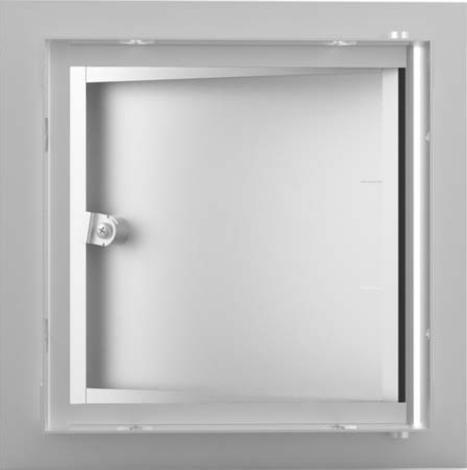

Acudor AS-9000-24x24 - 24" x 24" Prime Coated Fully Gasketed Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

• Designed to provide a gasketed fit in al types of walls and ceilings.
• This door is commonly used n clean rooms, laboratories, operating rooms etc.

Features & Benefits:

• Gasketed access door
• Formed door panel with reinforced edges and concealed hinge, along with open cell gasket between the door and frame.

Door Specifications:

• Material: 18 gauge door, 18 gauge mounting frame, flange to be 1" wide.
• Hinge: Concealed
• Gasket: Pemko S88 adhesive-backed bulb silicone gasket.
• Latch: Stainless Steel screwdriver operated cam latch (standard)
• Optional Latches: Cylinder lock and key, allen head cam latch, spanner head cam latch.
• Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.

Technical Documentation:

Acudor AS-9000 Gasketed Access Door Product Page: Click Here.
Acudor AS-9000 Gasketed Access Door Specification Submittal: Click Here.
