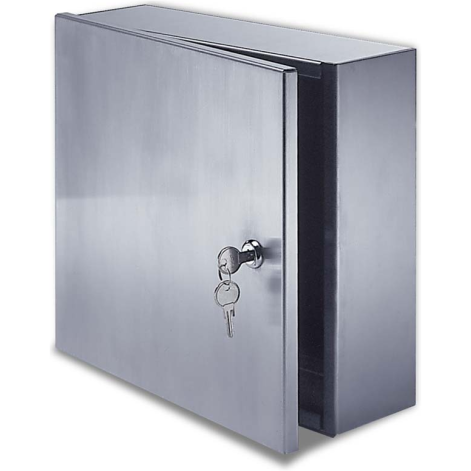

Acudor ASVB-12x12x4 - 12" x 12" x 4" Prime Coated Surface Mount Valve Box

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

• Provides easy access to all types of valves and controls that extend outside of the finished wall, needing protection by an enclosed box.

Features & Benefits:

• The depth of the valve box can be modified to meet all the valve and control requirements.

• When required, vision panels, louvers, engrave plates can be supplied, along with special hole for pipes or conduits.

Door Specifications:

• Material: Steel.
• Door: 16 gauge, overlaps box, providing for a tight secure fit.
• Box: 16 gauge, fully enclosed, completely attached to frame. When required box can be made to open back.
• Hinge: Continuous, exposed piano hinge.
• Latch: Cylinder lock & key (standard)
• Optional Latches: screwdriver operated cam latch, spanner head cam latch, flush paddle handle, thumb turn latch.
• Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.

Technical Documentation:

Acudor ASVB Surface Mount Valve Box Product Page: Click Here.
Acudor ASVB Surface Mount Valve Box Specification Submittal: Click Here.
