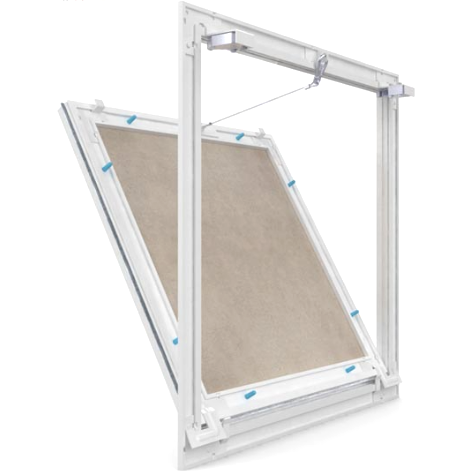

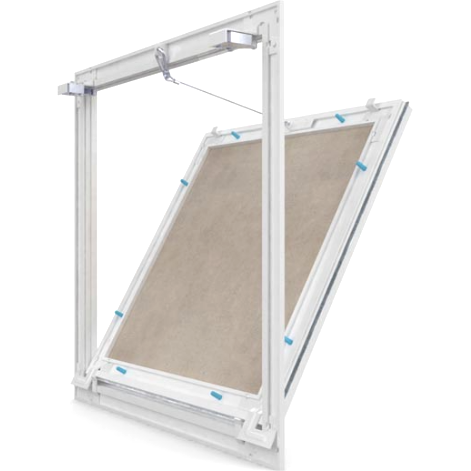

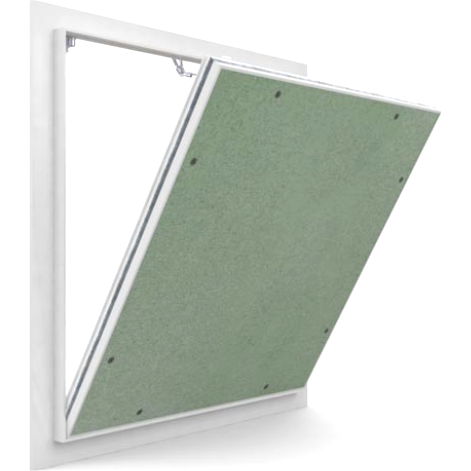

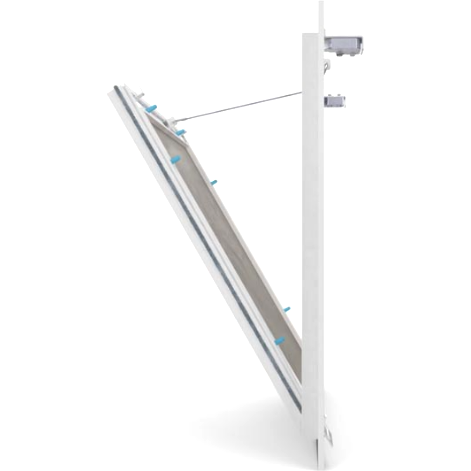

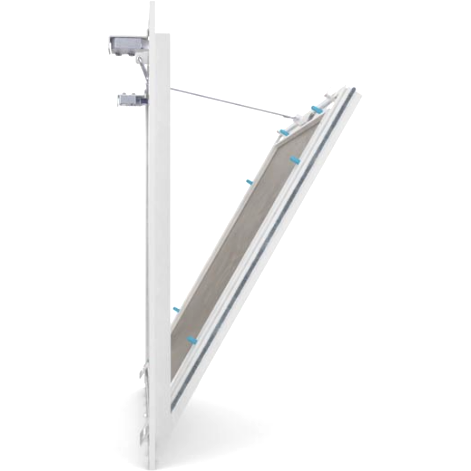

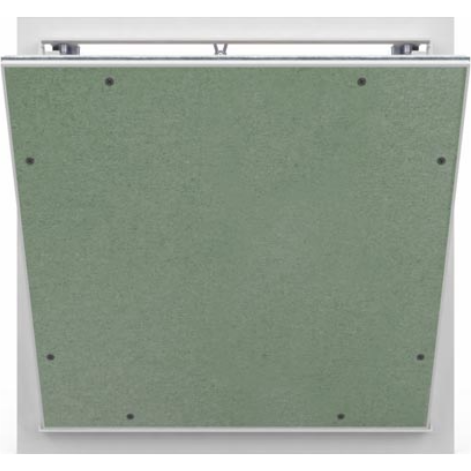

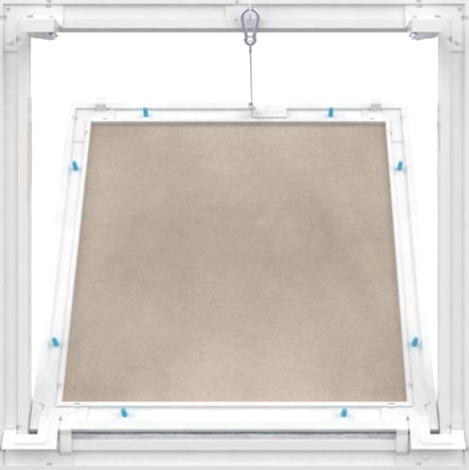

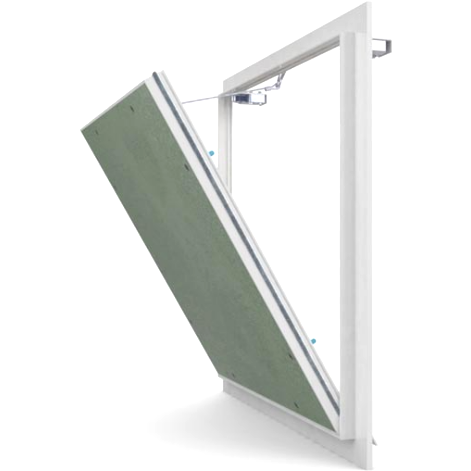

Acudor DW-5058-18x18 - 18" x 18" Recessed Access Door for 5/8" Drywall

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Supplied with drywall installed in door panel. For wall installations, hinge should be located at bottom.

Application:

• Designed to provide access in walls and ceilings, while maintaining an invisible, architecturally pleasing appearance.

Features & Benefits:

• Designed for installation in 5/8" Drywall.
• Aluminum extrusion door and frame.
• Powder painted.
• Dust seal gasket.
• Concealed touch latch.

Door Specifications:

• Material: Aluminum extrusion with drywall fitted in door panel
• Door Frame: Aluminum extrusion 6063-T6 recessed to provide similar edge to drywall bead to allow for finishing of wall or ceiling surface/
• Hinge: Wing hinge allows door panel to open to 90 degrees, and also allows for door panel to be removed from frame. Safety chain installed on door & frame for safety.
• Latch: Concealed touch latch (standard).
• Optional Latches: Screwdriver operated cam latch, allen head cam latch, spanner head cam latch, cylinder lock and key.
• Finish: Powder painted white.

Technical Documentation:

Acudor DW-5058 Recessed Access Door for 5/8" Drywall Product Page: Click Here.
Acudor DW-5058 Recessed Access Door for 5/8" Drywall Specification Submittal: Click Here.
