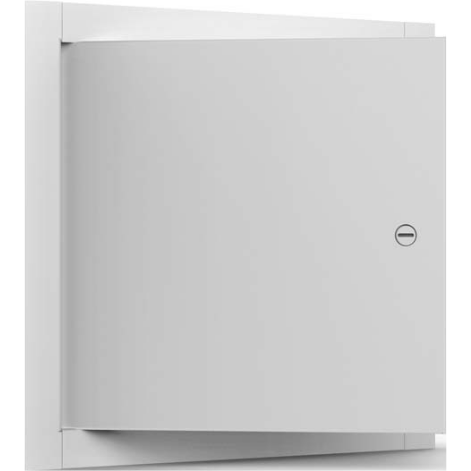

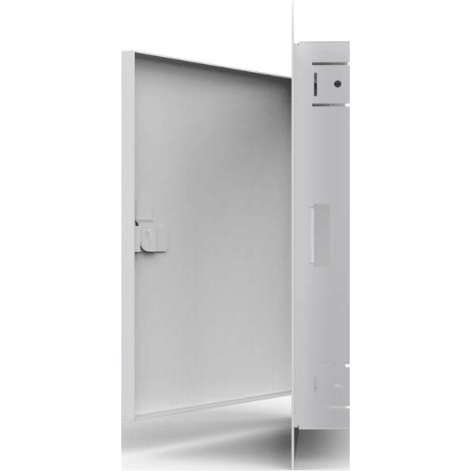

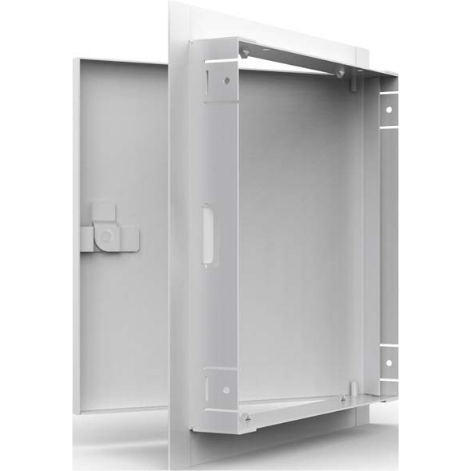

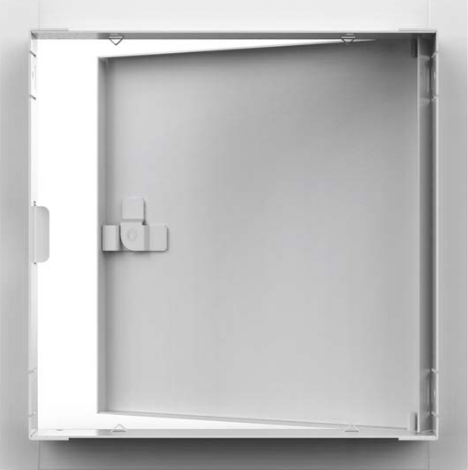

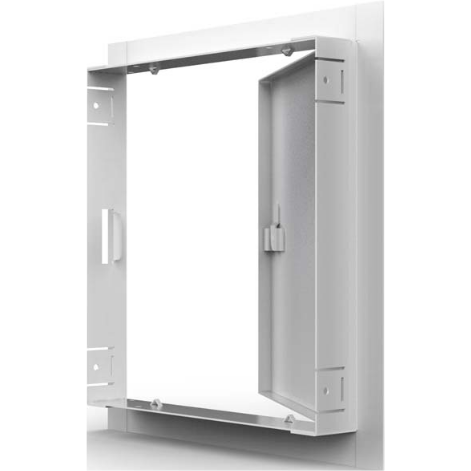

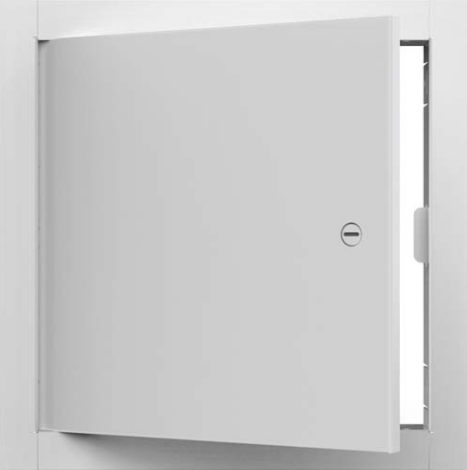

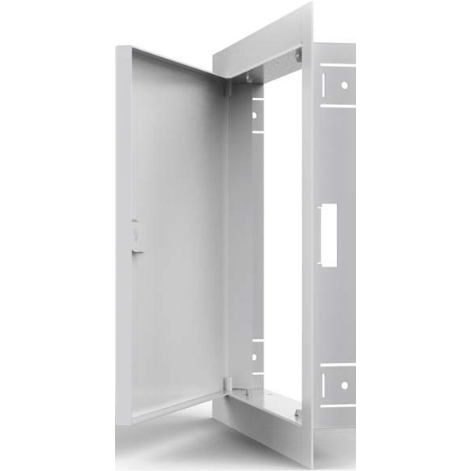

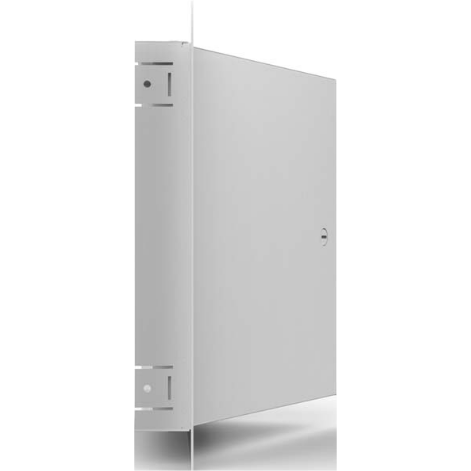

Acudor ED-2002-10x10 - 10" x 10" Universal Flush Prime Coated Steel Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

• Installation in Drywall, Plaster, Masonry, Tile, or any flush surface.
• Economical and attractive access door for walls & ceilings.

Features & Benefits:

• Formed door panel.
• Concealed hinge.

Door Specifications:

• Material: 18 gauge door, 18 gauge mounting frame.
• Door: Flush to frame with reinforced edges.
• Door Frame: 1" wide outside flange with 1-7/16" deep mounting frame. Knock over mounting tabs provided on 6x6, 8x8, 10x10, 12x12.
• Hinge: Concealed Hinge Pin.
• Latch: Stainless Steel screwdriver operated cam latch (standard)
• Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.

Technical Documentation:

Acudor ED2002 Universal Flush Access Door Product Page: Click Here.
Acudor ED2002 Universal Flush Access Door Specification Submittal: Click Here.
