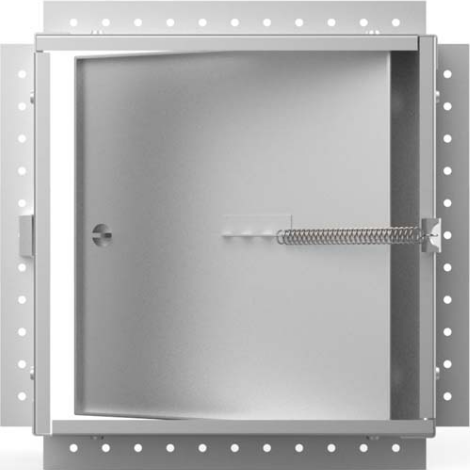

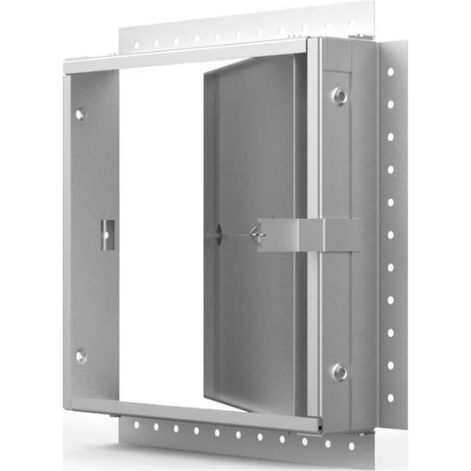

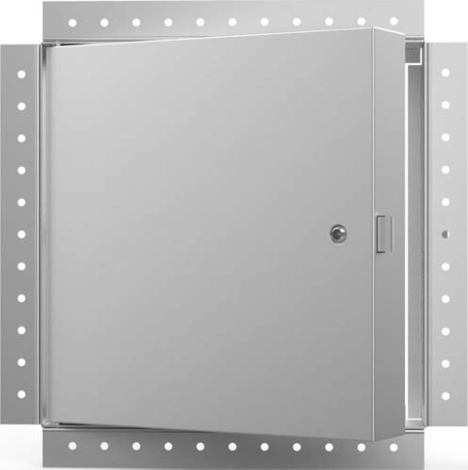

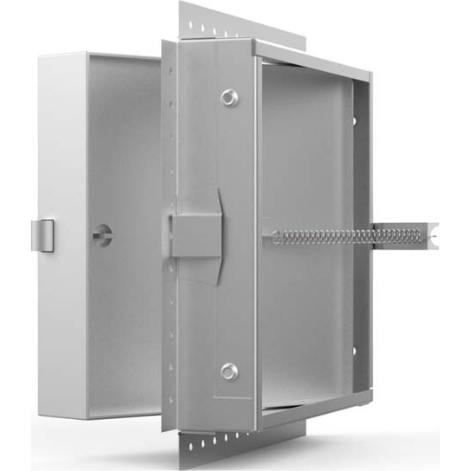

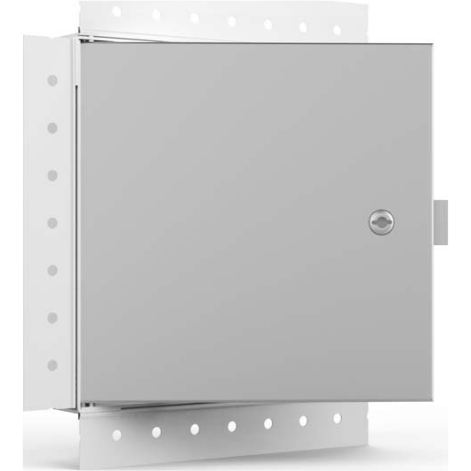

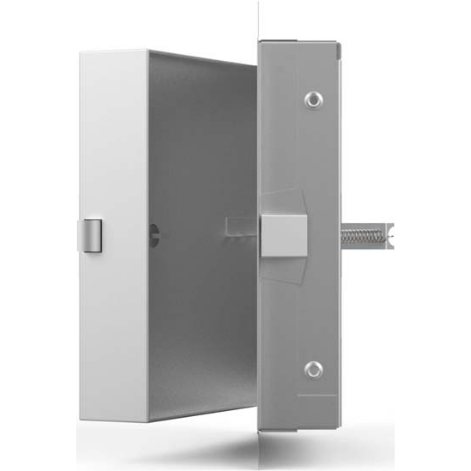

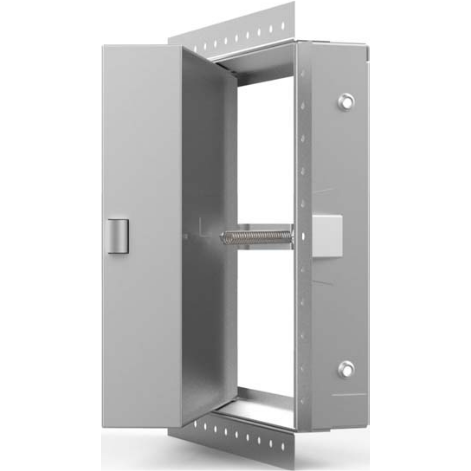

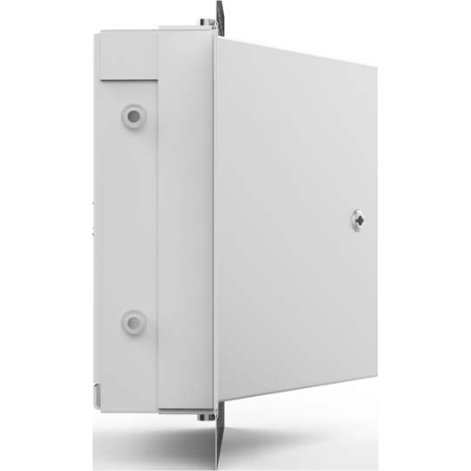

Acudor FW-5050-DW-10x10 - 10" x 10" Ceiling & Wall Fire Rated Prime Coated Steel Access Door with Drywall Taping Bead

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Features & Benefits:

• Insulated Door Panel
• Concealed hinge
• Self-latching / Self-closing
• Self-closing & self-latching door mechanism
• Inside latch release
• Drywall taping bead flange

Door Specifications:

• Material: 20 gauge door, 16 gauge mounting frame.
• Door filled with 2" thick fire rated insulation.
• Flush to frame with reinforced edges, flanged to be 1" wide.
• Hinge: Concealed.
• Fire Rating (Walls): UL - 1-1/2 hour "B" label. ULC - 2 hour "B" label. Warnock Hersey International 3 hour rated in a non-combustible ceiling. Max size 24" x 36".
• Standard Latch: Universal self latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
• Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.

Technical Documentation:

Acudor FW5050 Wall Fire Rated Prime Coated Steel Access Door Product Page: Click Here.

Acudor FW5050 Wall Fire Rated Prime Coated Steel Access Door Specification Submittal: Click Here.
