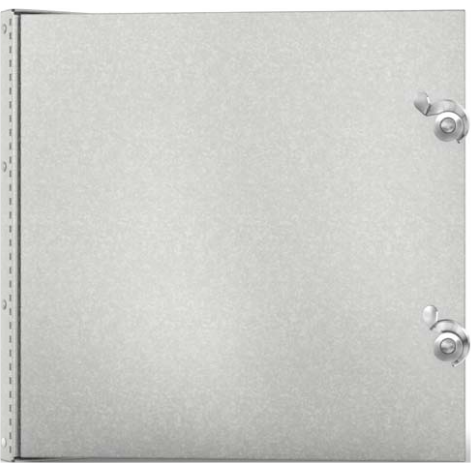

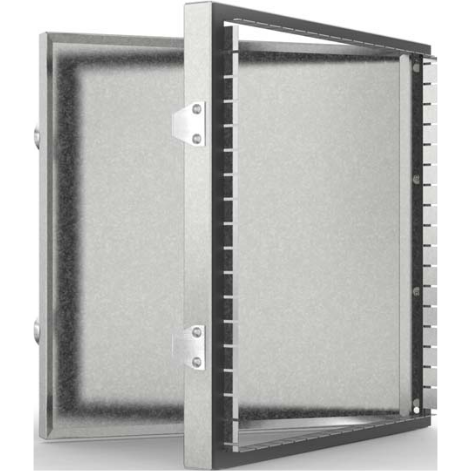

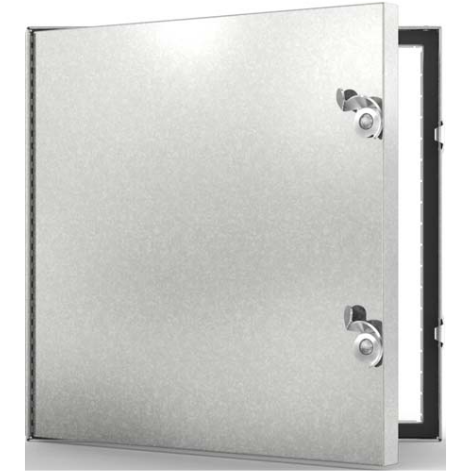

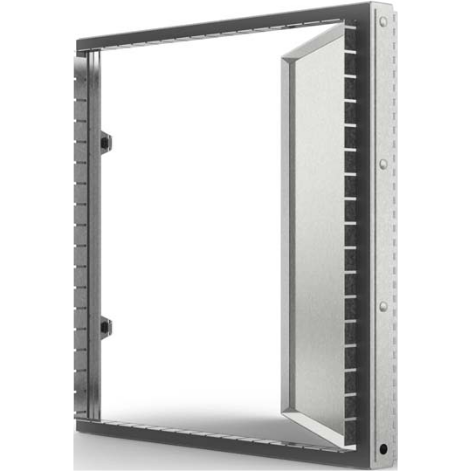

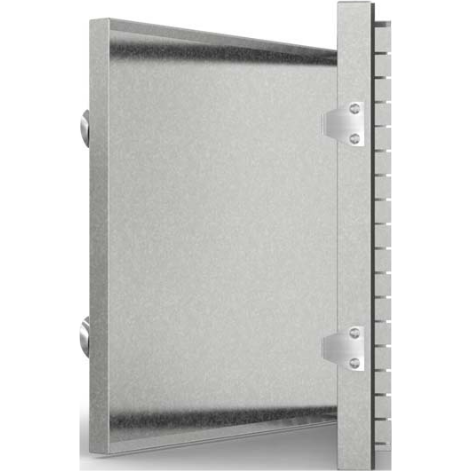

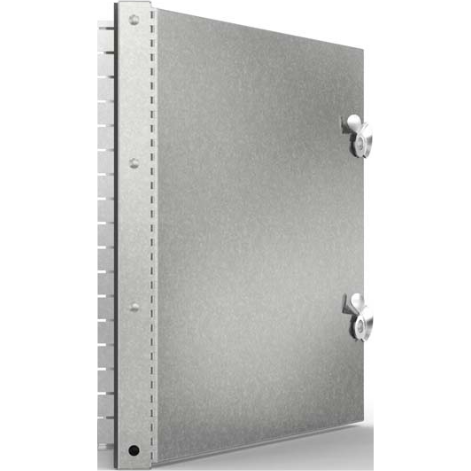

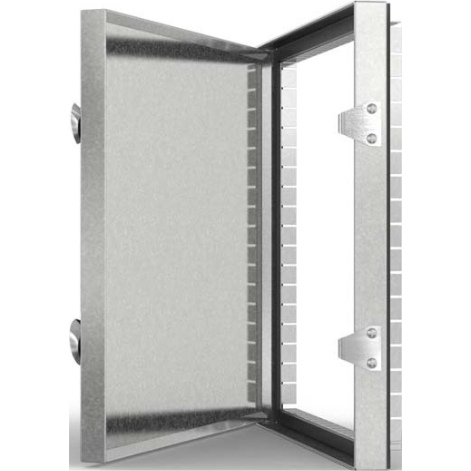

Acudor HD-5070-8x8 - 8" x 8" Galvanized Duct Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

• Assures a tight seal without obstruction in the air system.

Features & Benefits:

• Insulated door panel, along with the gasketing between the door and frame.
• These doors are designed for use in low to medium pressure up to 3" static W.G.

• 5/8" notched knock over tabs on the inside of the frame provide for easy installation.

Door Specifications:

• Material: Galvanized steel, double panel.
• Door: 24 gauge.
• Mounting Frame: 24 gauge with 5/8" notched knock over tabs.
• Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame, also between frame and duct.
• Hinge: Continuous aluminum piano hinge.
• Insulation: Door panel filled with 2" fiberglass insulation (7.7 R factor), compressed into 1".
• Latch: Self tightening, hand operated cam latch (standard)

Technical Documentation:

Acudor HD5070 Galvanized Duct Access Door Product Page: Click Here.
Acudor HD5070 Galvanized Duct Access Door Specification Submittal: Click Here.
