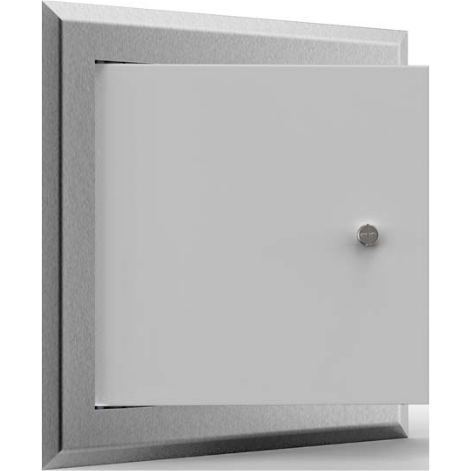

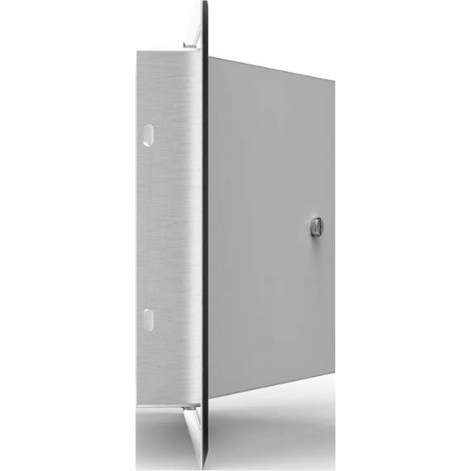

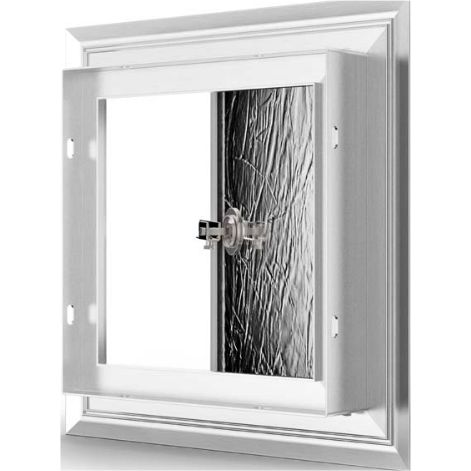

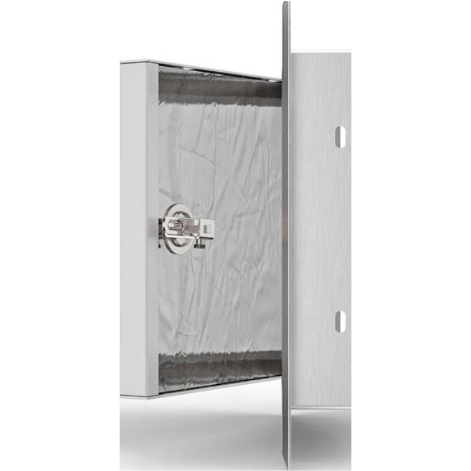

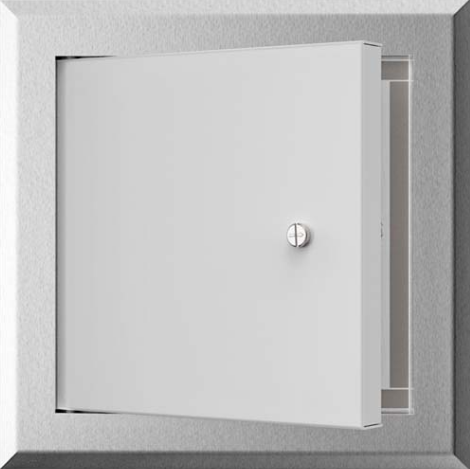

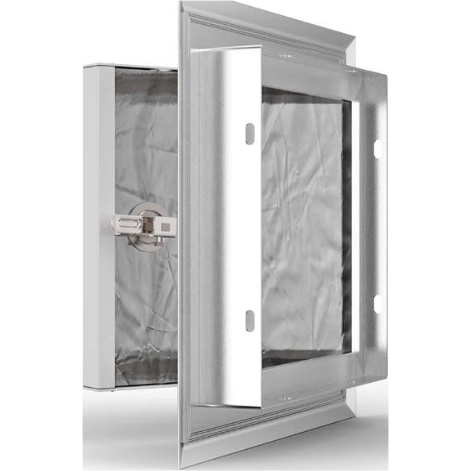

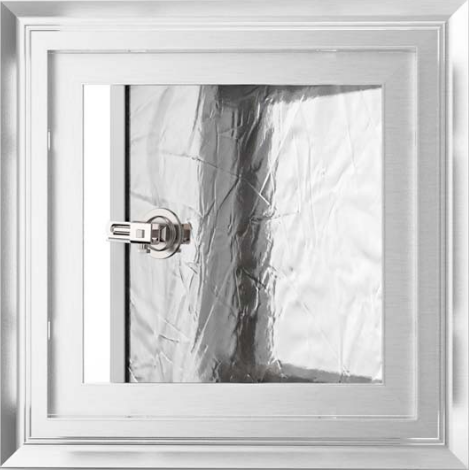

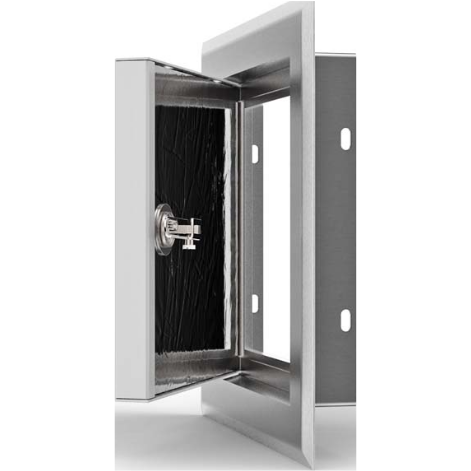

Acudor LT-4000-24x24 - 24" x 24" Aluminum Gasketed Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

• Lightweight aluminum access door for walls and ceilings.
• Ideal for exterior applications, and specific interior applications where corrosion or moisture is a concern.

Features & Benefits:

• Mitered aluminum frame provides and architecturally pleasing appearance.
• Aluminum door panel is lined with 3/4" polystyrene insulation.
• All aluminum construction is ideal for exterior applications, and specific interior applications where corrosion or moisture is a concern.
• Gasketing between the door and frame.

Door Specifications:

• Material: Aluminum 0.064 door and 0.080 frame. Flush to edge of frame, 1-5/16" mitered aluminum extrusion flange with 1-1/2" deep mounting frame.
• Hinge: Doors with width of 24" or less to have concealed pin hinge. Doors with width over 24" to have continuous aluminum piano hinge with exposed knuckle, set to open to 180 degrees.
• Insulation: 3/4" type 3 expanded polystyrene (EPS) foil lined insulation, with a 3.18 R value.

• Gasketing: 1/8" x 3/4" closed cell neoprene gasketing.
• Latch: Screwdriver operated cam latch (standard).
• Optional Latches: Cylinder lock and key.
• Finish: Mill Finish.

Technical Documentation:

Acudor LT4000 Aluminum Gasketed Access Door Product Page: Click Here.
Acudor LT4000 Aluminum Gasketed Access Door Specification Submittal: Click Here.
