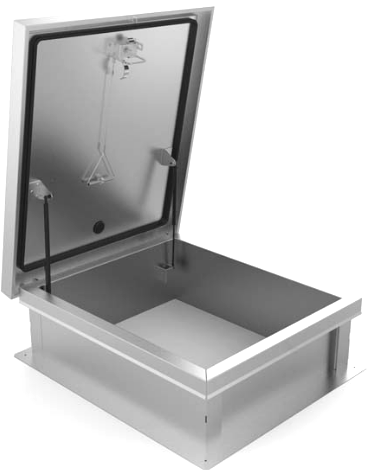

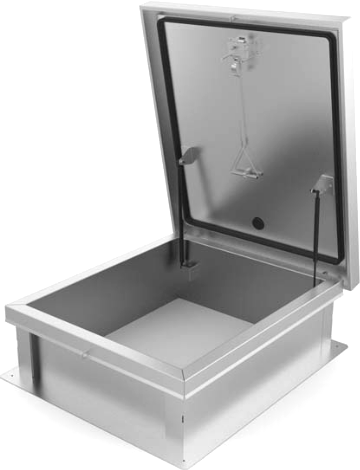

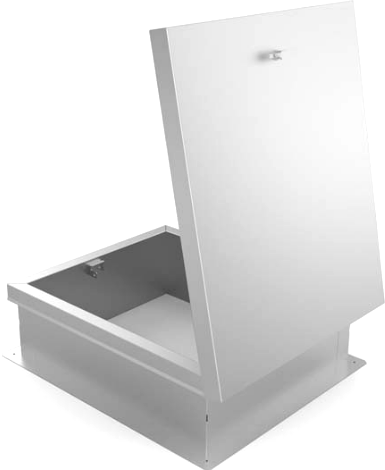

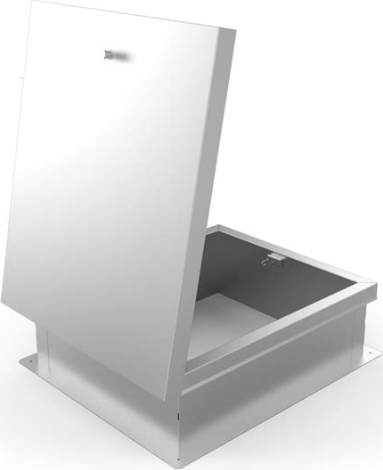

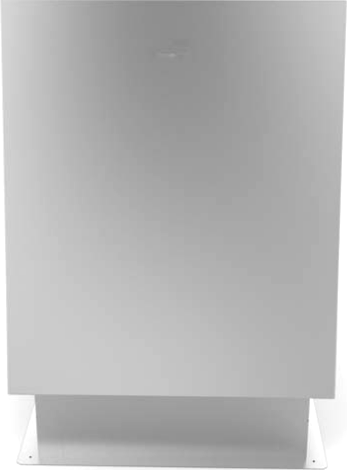

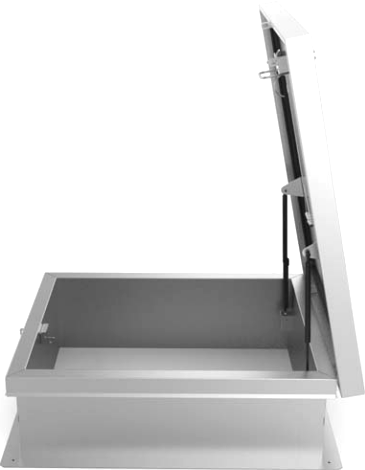

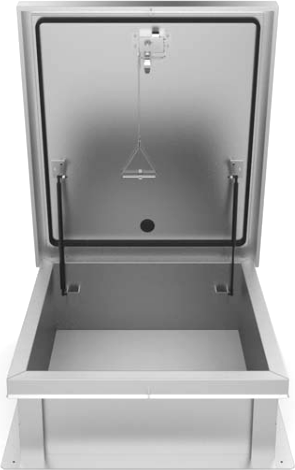

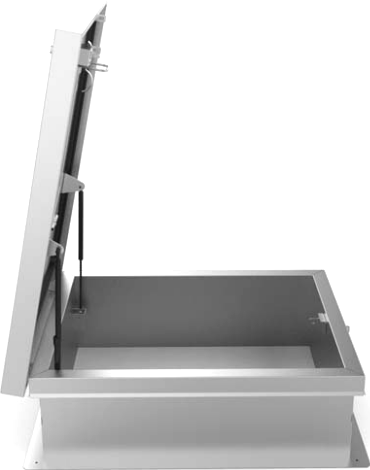

Acudor RHG4444 36" x 36" Galvanized Ladder Access Roof Hatch

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

• Acudor ladder access roof hatches are designed to provide convenient economical access to the roof of the building.

Features & Benefits:

• Weather tight construction.
• 12" high insulated curb.
• G90 galvanized steel.
• Stainless steel hardware.
• Convenient one hand operation.
• Supports 40lbs/sqft live load.

Door Specifications:

• Cover: Double skin construction with 1" polyiso R6 insulation and continuous EPDM foam weather / draft seal gasket that is attached to the inside of the cover to provide a flush, tight fit. Designed to support a live load of 40lbs/sqft, the cover is 14 gauge galvanized steel with a 22 gauge galvanized steel inside liner.
• Curb: 14 gauge galvanized steel with 1" thick polyiso R6 insulation at curb exterior. Curb is 12" high with 3.375" wide bottom flange an pre-drilled mounting holes.
• Hinge: Heavy duty aluminum pintle hinges with 3/8" SS pin.
• Opening: Gas Spring operators allow cover to open and close with ease. Stainless Steel inside pull handle allows for easy control when closing cover.
• Door Latch: Self latching, stainless steel outside T handle with stainless steel inside lock and lever assembly. Heavy Duty detention lock with paracentric key. Unit also has inside and outside padlock provisions.
• Finish: Mill.

Options:

RH-RGS: Safety Rail System with Self Closing Gate Designed to Meet OSHA Standards.

Technical Documentation:

Acudor RHG Galvanized Ladder Access Roof Hatch Product Page: Click Here.
Acudor RHG Galvanized Ladder Access Roof Hatch Specification Submittal: Click Here.

Acudor RH-RGS Safety Rail System Product Page: Click Here.

Acudor RH-RGS Safety Rail System Specification Submittal: Click Here.
