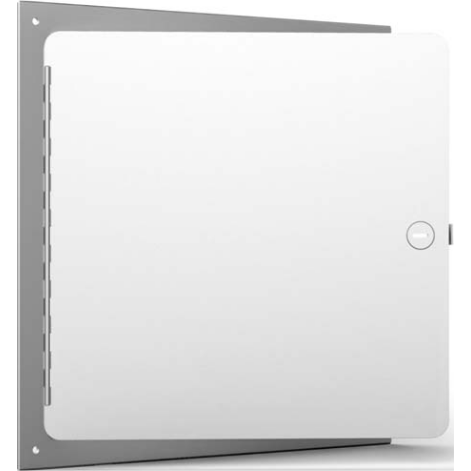

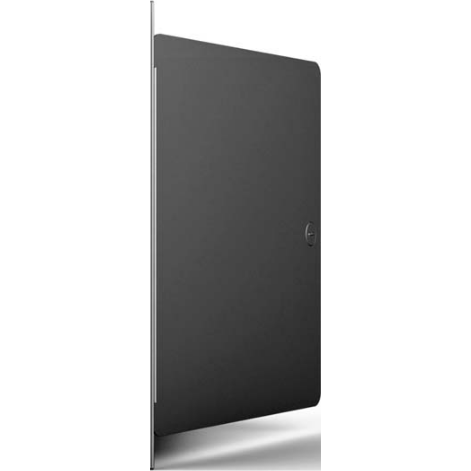

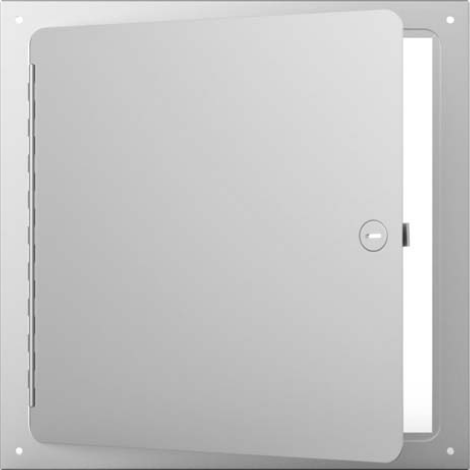

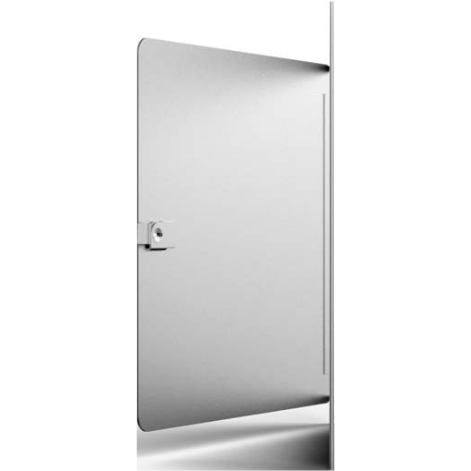

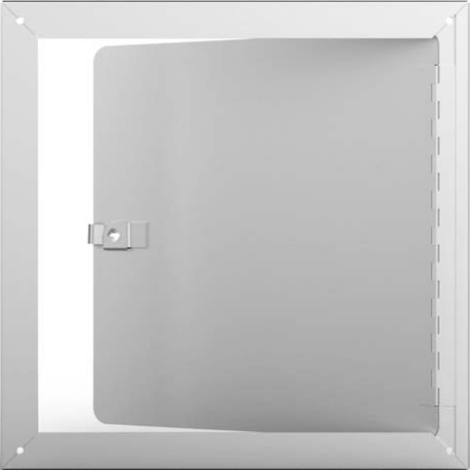

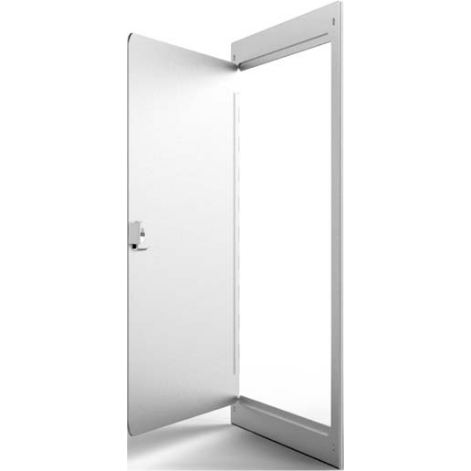

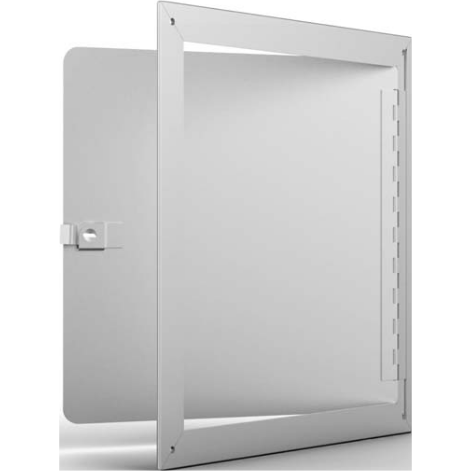

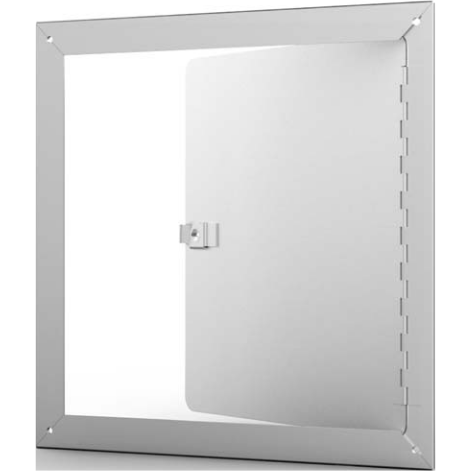

Acudor SF-2000-8x8 - 8" x 8" Prime Coated Surface Mounted Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

• An innovative surface mounted access door for all types of walls and ceilings.

Features & Benefits:

• An exposed continuous piano hinge allows the door panel to open to 175 degrees.

• There is no frame to extend into the wall or ceiling.
• Perfect for access to odd size openings.

Door Specifications:

• Door / Door Frame: 16 gauge steel, flush to frame with rounded safety corners and a once piece outer flange frame.
• Hinge: Continuous exposed piano hinge.
• Latch: Stainless Steel screwdriver cam latch (standard)
• Optional Latches: cylinder lock & key, allen head cam latch, spanner head cam latch.
• Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.

Technical Documentation:

Acudor SF2000 Surface Mounted Access Door Product Page: Click Here.
Acudor SF2000 Surface Mounted Access Door Specification Submittal: Click Here.
