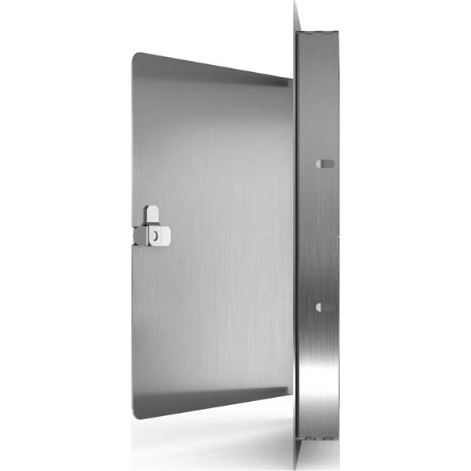

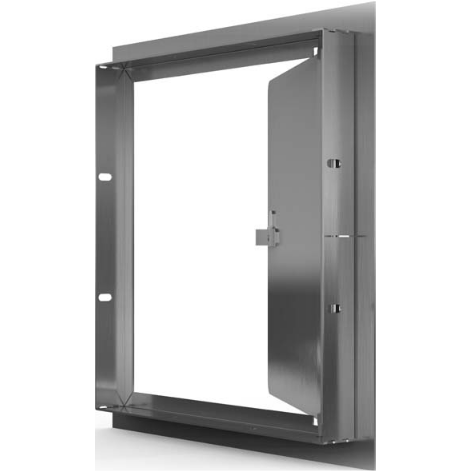

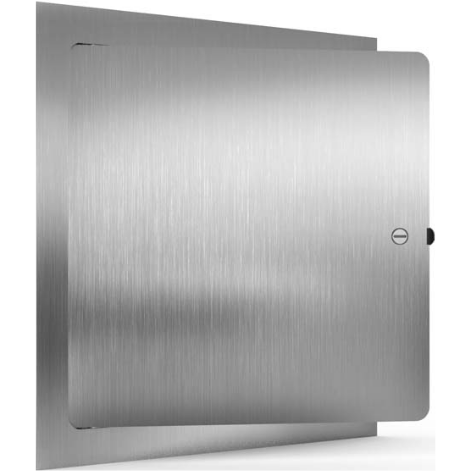

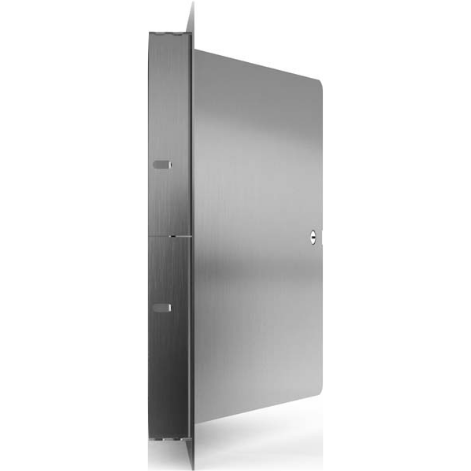

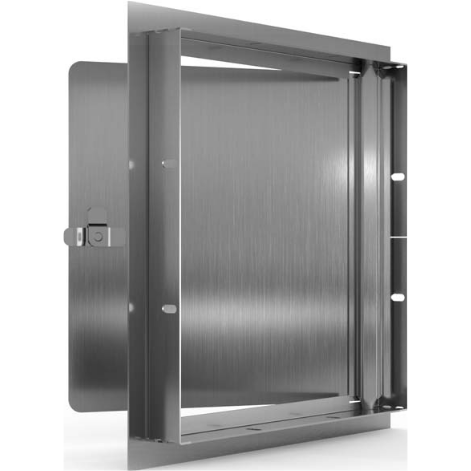

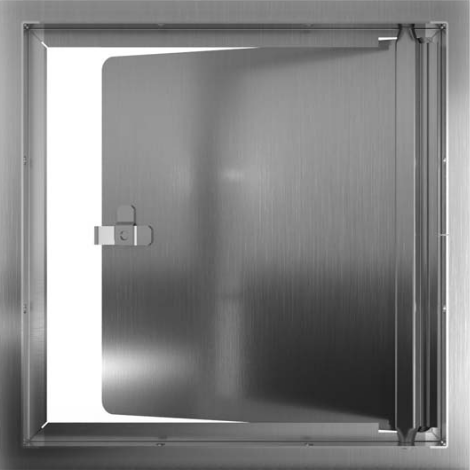

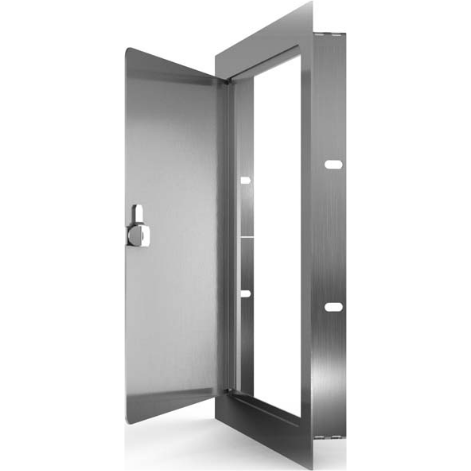

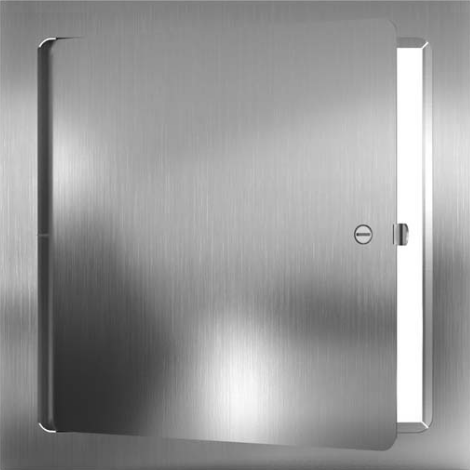

Acudor UF-5000-10x10 SS - 10" x 10" Universal Flush Stainless Steel Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Features & Benefits:

• It is designed for installation in drywall, plaster, masonry, tile or any flush surface.
• The door panel features rounded safety corners, which provide an architecturally pleasing appearance.
• The one-piece trim flange will not rack, sag or distort.
• The unique continuous concealed hinge will not bind or corrode, allowing the door to operate freely time and time again.
• For easy installation, the mounting frame is 1 1/4" deep, giving maximum clearance behind the door-frame.

Door Specifications:

• Material: Up to 16" x 16" - 16 gauge door, 18 gauge mounting frame.
• Material: Over 16" x 16" - 14 gauge door, 16 gauge mounting frame.
• Door: Flush to frame with rounded safety corners.
• Mounting Frame: One piece outer flange welded to mounting frame.
• Latch: Stainless Steel screwdriver operated cam latch (standard)
• Optional Latches: Cylinder lock and key, allen head cam latch, spanner head cam latch.
• Finish: Type 304 #4 satin polish.

Technical Documentation:

Acudor UF5000 Universal Flush Steel Access Door Product Page: Click Here.
Acudor UF5000 Universal Flush Steel Access Door Specification Submittal: Click Here.
