Product Overview

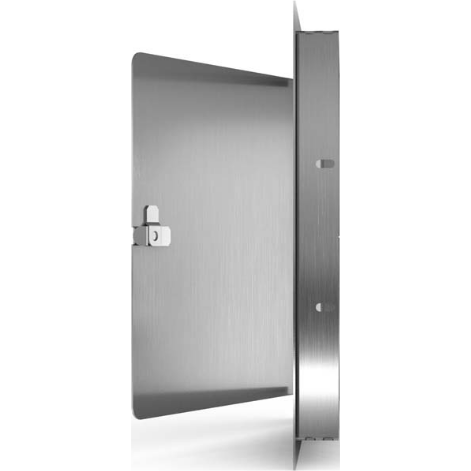

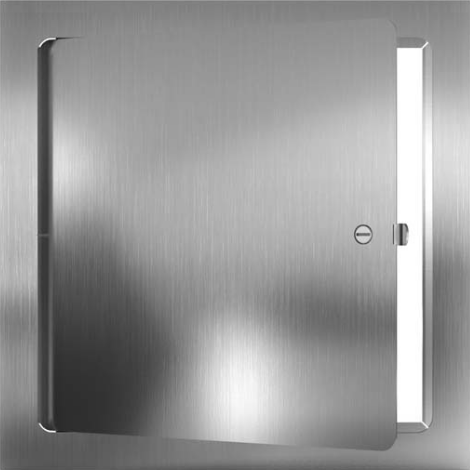

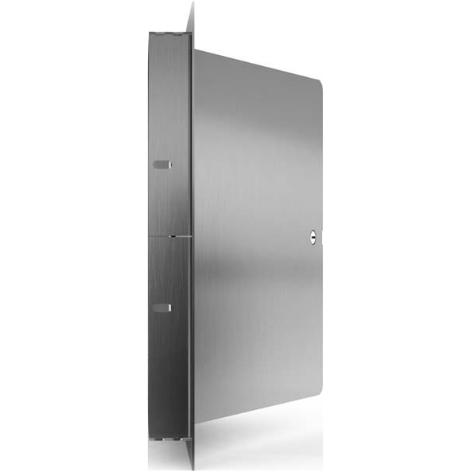

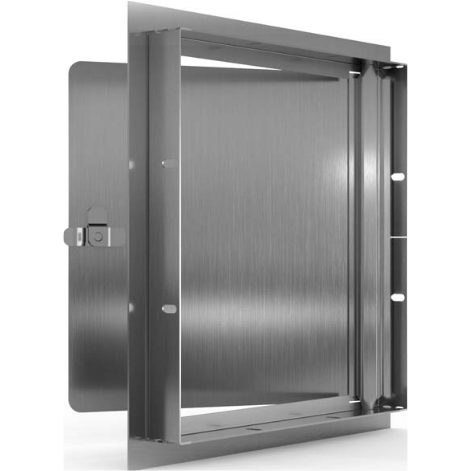

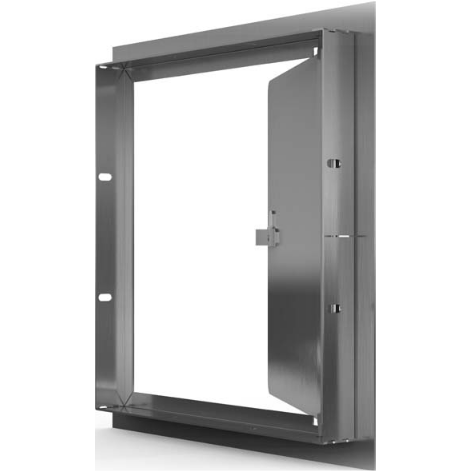

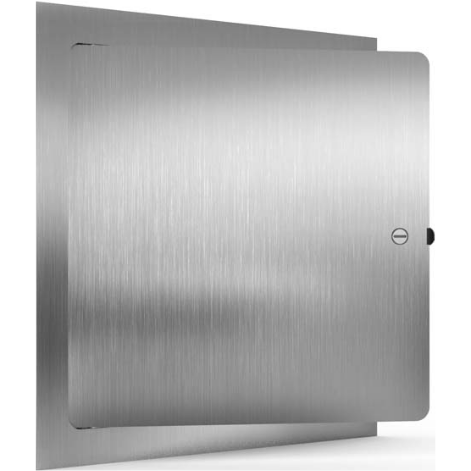

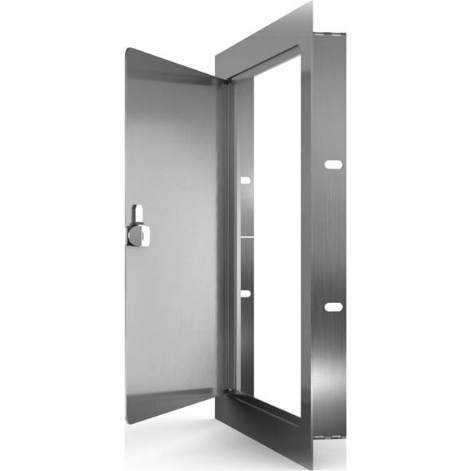

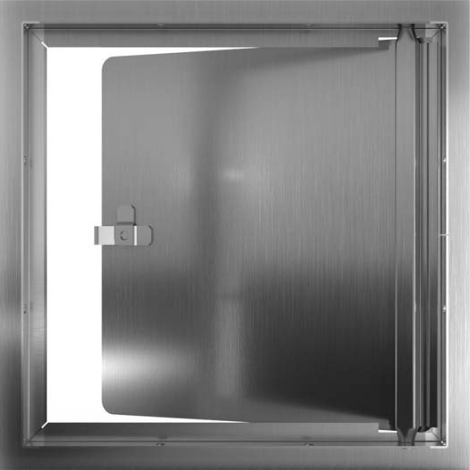

The Acudor UF-5000 12x12 Stainless Steel Access Door is a professional-grade, universal flush access door for commercial HVAC systems. Expertly designed for seamless installation in all types of flush surfaces, it offers unparalleled durability and functionality. Crafted from industrial-grade stainless steel, it's corrosion-resistant and built to withstand demanding commercial applications. The door features a screwdriver operated cam latch for secure locking and a continuous, concealed hinge for a clean, unobtrusive finish.

Features & Benefits

• Professional-grade construction: Crafted from high-quality stainless steel for lasting performance.
• Durable design: Withstands the harshest commercial environments.
• Versatile applications: Perfect for HVAC contractors, facility managers, and commercial builders.
• Easy installation: Designed for installation in all types of flush surfaces.
• Safety-focused: Flush to frame with rounded safety corners to prevent accidents.
• Secure locking: Stainless Steel screwdriver operated cam latch for reliable security.

Specifications

• Part Number: UF - 5000 12 x 12 Stainless Steel
• Size: 12 x 12
• Material: Up to 16' X 16' - 16 gauge, 18 gauge mounting frame
• Mounting: One piece outer flange welded to mounting frame
• Hinge: Continuous, concealed
• Latch: Stainless Steel screwdriver operated cam latch
• Finish: Stainless Steel: Type 304 - #4 satin polish

Installation Tips

1. Ensure the intended installation surface is flush and clean.
2. Align the door frame with the opening.
3. Use appropriate hardware to secure the mounting frame to the surface.
4. Ensure the door opens and closes smoothly after installation.
5. Apply additional finish paint for enhanced corrosion resistance.
6. Regularly check and maintain the door for optimal performance.

FAQs

• Q: What materials is the UF-5000 made from?
  A: It's made from professional-grade stainless steel which is corrosion-resistant.
• Q: Can it be installed in any flush surface?
  A: Yes, it's designed for universal installation.
• Q: What is the finish on the door?
  A: The door features a #4 satin polish on Type 304 stainless steel.
• Q: How is the door secured?
  A: It features a screwdriver operated cam latch for secure locking.

Product Documentation

• Submittal Drawing.pdf
• DWG.pdf
• 3D View.pdf
• BIM.pdf
• Archicad.pdf
