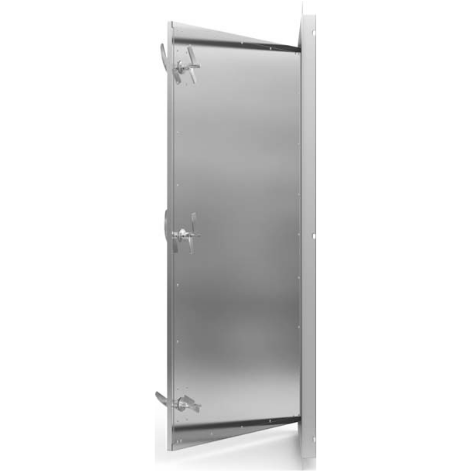

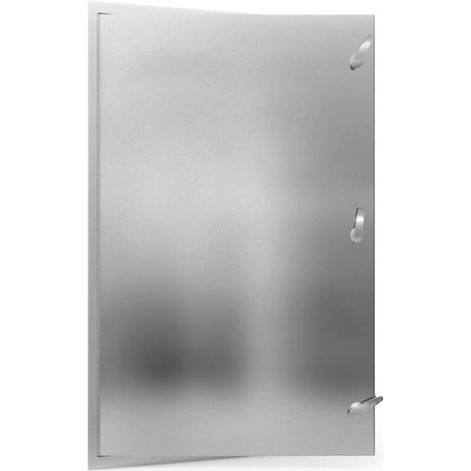

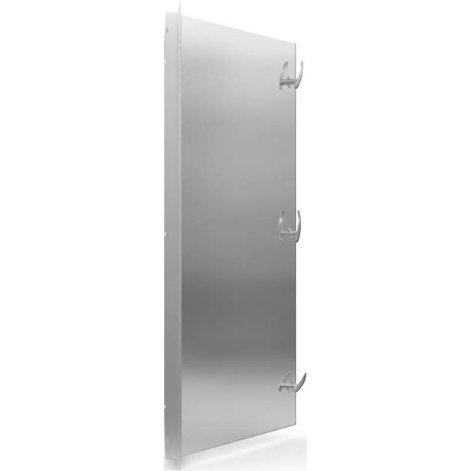

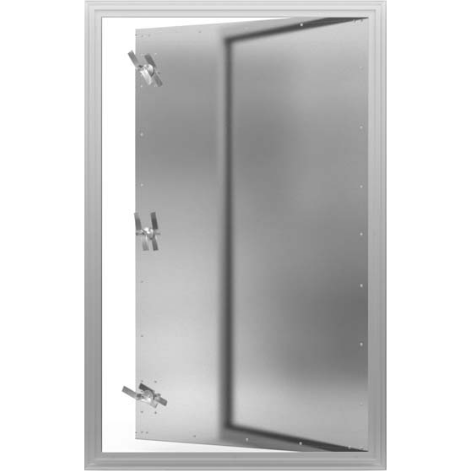

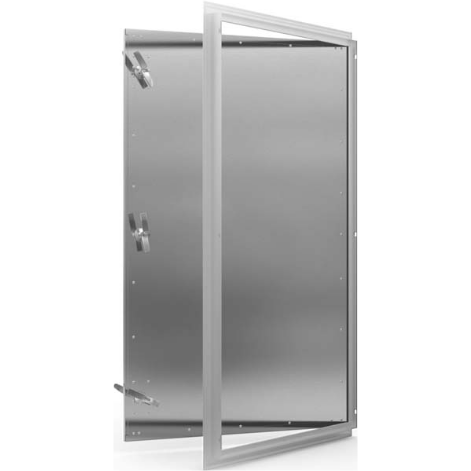

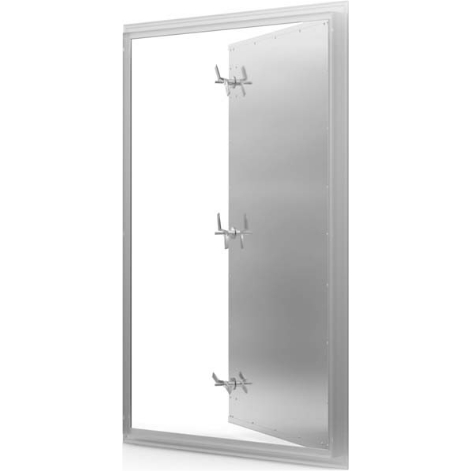

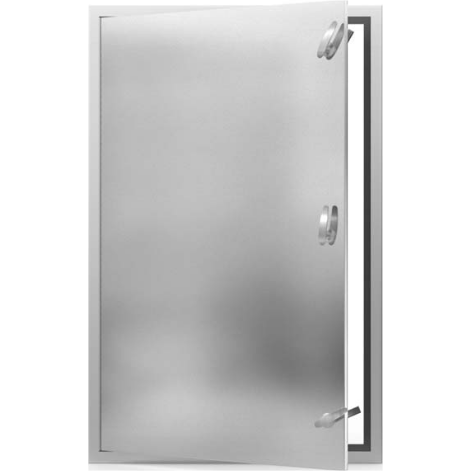

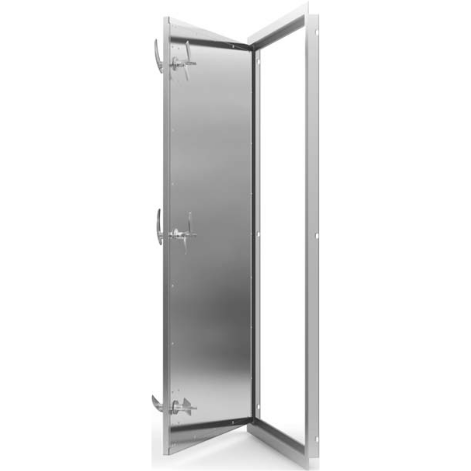

Acudor WD-8000-30x72 - 30" x 72" Walk Through Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

• Designed to provide convenient walk through access to duct work interiors & air handling units.
• low to medium pressure systems and plenums.

Features & Benefits:

• Heavy duty construction, along with a continuous hinge and compression handles.

• Optional Features: Removable door panel / Vision panel / High pressure units / Key operated handles.

Door Specifications:

• Material: Galvanized Steel, also available in Aluminum and Stainless Steel.
• Door: 22 gauge.
• Mounting Frame: Double panel frame is 1-15/16" wide x 1-1/2" deep extruded aluminum with mitered corners.
• Gasket: 1/8" thick x 1/2" wide closed cell neoprene gasketing between door and frame.
• Hinge: Continuous steel piano hinge, opens 180 degrees.
• Insulation: Door panel filled with 1" thick fiberglass insulation, 4 R value.
• Latch: Dual acting compression handles, operable from both sides (standard). Units 48" high and under have 2 handles. Units Over 48" High have 3 handles.
• Finish: Mill.

Technical Documentation:

Acudor WD8000 Walk Through Access Door Product Page: Click Here.
Acudor WD8000 Walk Through Access Door Specification Submittal: Click Here.
