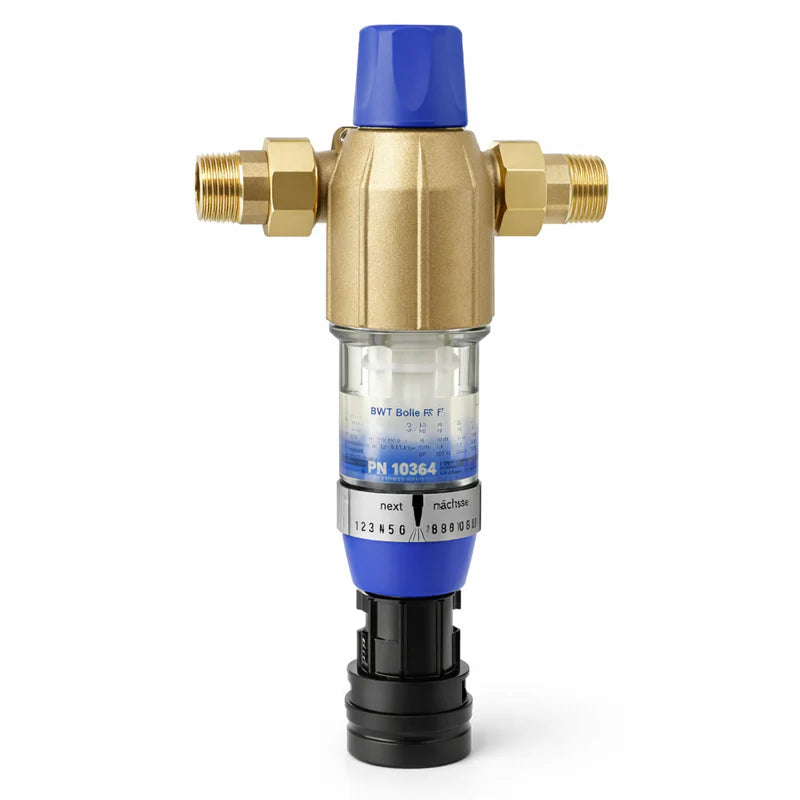

BWT Bolero RF 3/4" Backwash Filter | Compact Whole-House Water Filter
Part No.: 10364
Product Overview
The BWT Bolero RF 3/4" Backwash Filter is a compact whole-house water filtration solution designed to protect drinking and service water systems from sediment such as rust, sand, and chips. Installed at the main water inlet, it helps prevent damage to plumbing, valves, and household appliances.
This filter uses a manual backwash system with a 90 µm filter cloth. Trapped particles are removed by backwashing at regular intervals, eliminating the need for disposable cartridges. Its transparent housing allows quick visual inspection, while the integrated date ring helps track maintenance.
Features & Benefits
- ✅ Whole-house sediment filtration for drinking and service water
- ✅ Captures rust, sand, chips, and coarse particles > 90 µm
- ✅ Manual backwash cleaning—no cartridges required
- ✅ Compact design for horizontal or vertical installation
- ✅ Transparent housing for easy inspection
- ✅ Integrated date ring for backwash scheduling
- ✅ Brass top section for durability
- ✅ Slip-clutch turning knob prevents mechanical damage
Specifications
- Brand: BWT
- Model: Bolero RF
- Type: Manual backwash whole-house water filter
- MPN / Part Number: 10364
- Connection size: 3/4" (DN20)
- Filtration rating: 90 µm
- Installation orientation: Horizontal or vertical
- Filter housing: Transparent cylinder
- Top section material: Brass
- Drain connection: HT DN50
Installation Tips
- Install at the main water inlet after the water meter.
- Ensure clearance for manual backwashing and inspection.
- Connect the backwash outlet to a drain with minimum DN40 capacity.
- Protect the unit from frost, UV exposure, and heat above 40 °C.
- Backwash regularly based on water quality.
Technical Details:
| BWT BOLERO RF/HWS | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
|---|---|---|---|---|---|
| Connection width (DN) | 20 | 25 | 32 | 40 | 50 |
| Flow rate @ Δp = 0.2 bar (2.9 psi) m³/h (gpm) |
3 (13.2) |
3.5 (15.4) |
4 (17.6) |
10.5 (46.2) |
11 (48.4) |
| Flow rate @ Δp = 0.5 bar (7.3 psi) m³/h (gpm) |
4 (17.6) |
5 (22) |
6 (26.4) |
15.5 (68.2) |
15.5 (68.2) |
| Filter mesh size (µm) | 90 | ||||
| Operating pressure min./max. bar (psi) |
2.5–16 (36.2–232) |
||||
| Dimensions H × W mm |
330 × 184 | 330 × 184 | 330 × 203 | 460 × 240 | 460 × 260 |
| Order no. RF | 10364 | 10365 | 10366 | 10367 | 10368 |
| Order no. HWS | 10369 | 10370 | 10371 | 10372 | 10373 |
