BWT Protector Mini 1/2" Cold Rinse Water Filter 30 µm | PN 10558
BWT Protector Mini 1/2" Cold Rinse Water Filter 30 µm | PN 10558
In stock
Pricing is available to registered account holders. Please sign in to your account or request access to view pricing and place orders online.
REGISTER OR LOGIN
Couldn't load pickup availability
Product Description
Product Description

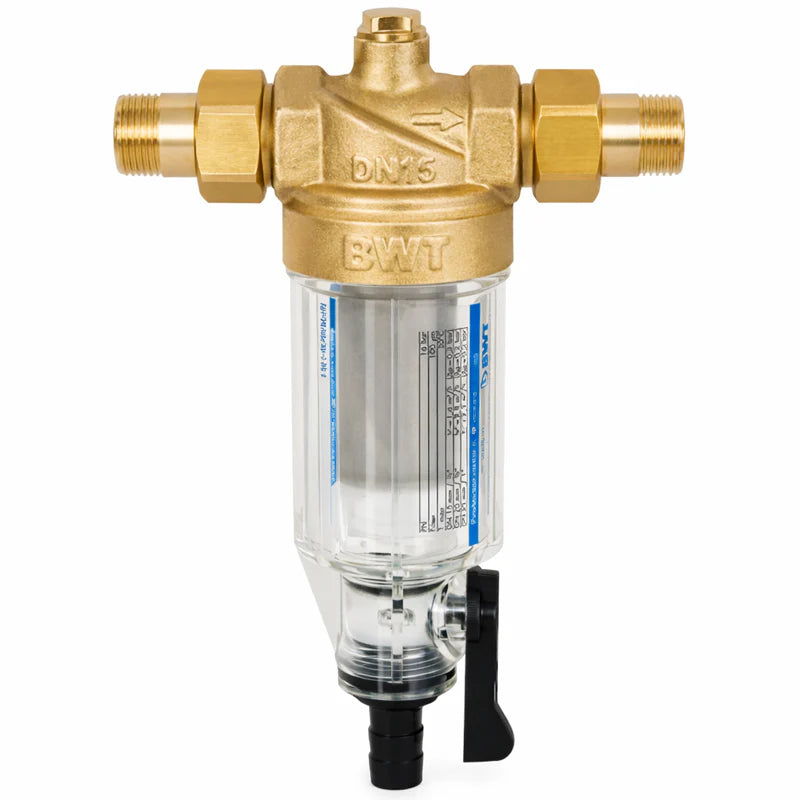

BWT Protector Mini C/R 1/2" Rinse Water Filter – 30 µm
Product Overview
The BWT Protector Mini C/R 1/2" – 30 µm is a compact rinse-type domestic water filter designed for cold water applications requiring finer sediment filtration. Installed upstream of plumbing fixtures, boilers, and appliances, it protects systems from malfunction and corrosion caused by rust, sand, and fine debris.
This version features a 30 µm stainless steel filter element, providing enhanced filtration while maintaining reliable flow. The integrated rinse valve allows easy cleaning without disposable cartridges.
Features & Benefits
- Compact rinse filter for cold water installations
- Fine 30 µm sediment filtration
- Removes rust, sand, and fine debris
- Stainless steel filter element
- Integrated rinse valve for easy cleaning
- Brass top section with manometer connection
- Vertical or horizontal installation
- Protects plumbing and water-using appliances
Specifications
- Brand: BWT
- Series: Protector Mini
- Product Type: Rinse-type water filter
- MPN / Part Number: 10558
- Connection Size: 1/2" (DN15)
- Application: Cold water (C/R)
- Filtration Rating: 30 µm
- Operating Pressure: 1.5–16 bar (21.7–232 psi)
- Max. Water Temperature: 30 °C (86 °F)
- Installation Orientation: Horizontal or vertical
Installation Tips
- Install in the cold water line upstream of protected equipment.
- Install shut-off valves before and after the filter.
- Observe flow direction arrows on the housing.
- Protect from frost, UV exposure, and excessive heat.
- Inspect every two months and rinse regularly.
Technical Details:
| BWT PROTECTOR MINI C/R | 1/2" (100 µm) | 1/2" (30 µm) |
|---|---|---|
| Connection width (DN) | 15 | 15 |
| Flow rate m³/h (gpm) |
1.6 (7) |
1.6 (7) |
| Filter mesh size (µm) | 100 | 30 |
| Operating pressure min./max. bar (psi) |
1.5–16 (21.7–232) |
1.5–16 (21.7–232) |
| Dimensions H × W mm |
164 × 133 | 164 × 160 |
| Order no. | 10523 | 10558 |
Technical Downloads
Specification Submittal
Specification Submittal
No Download Currently Available
Installation Instructions
Installation Instructions
No Download Currently Available
Product Brochure
Product Brochure
No Download Currently Available
