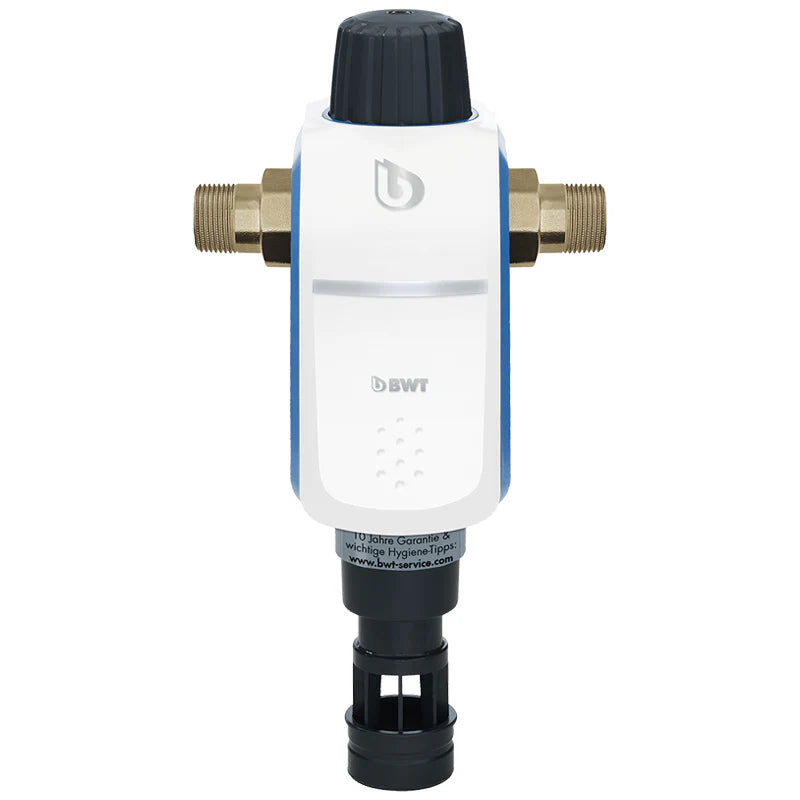

BWT R1 Backwash Filter 1" RSF LF | Lead-Free Whole House Filter
Part Number: 125596639
Product Overview
The BWT R1 Backwash Filter 1" RSF LF is a high-performance, lead-free whole house water filter designed to protect residential plumbing systems and water-using appliances from sediment such as rust, sand, and debris. Installed at the main water inlet after the water meter, it helps prevent dripping faucets, clogged valves, and appliance malfunctions caused by foreign particles.
This RSF (backwash filter) model features BWT’s proven 2-phase backwash technology for particularly intensive cleaning. Instead of frequent cartridge replacements, the filter is maintained through manual backwashing, recommended every 6 months to support consistent filtration and hygienic drinking water quality. This version is built without a pressure reducer for systems where pressure regulation is handled elsewhere.
Features & Benefits
- ✅ Lead-free (LF) construction for potable water applications
- ✅ Whole house sediment protection against rust, sand, and debris
- ✅ 2-phase backwash technology for intensive, hygienic cleaning
- ✅ Manual backwash maintenance—no disposable cartridges required
- ✅ Helps prevent dripping taps and appliance malfunctions
- ✅ High-flow 1" (DN25) connection for residential main lines
- ✅ Horizontal or vertical installation flexibility
- ✅ Quick installation via HydroModul
- ✅ 10-year warranty with product registration
Specifications
- Brand: BWT
- Series: R1
- Model: R1 RSF LF
- Type: Backwash filter (manual backwash)
- MPN / Part Number: 125596639
- Connection size: 1" (DN25)
- Filter mesh size: 90 µm
- Flow @ Δp = 0.2 bar (2.9 psi): 3.7 m³/h (16.3 gpm)
- Flow @ Δp = 0.5 bar (7.3 psi): 6.0 m³/h (26.4 gpm)
- Operating pressure (min/max): 2.5–16 bar (36.2–232 psi)
- Dimensions (H × W): 352 × 184 mm (13.86 × 7.24 in)
- Installation orientation: Horizontal or vertical
- Material: Lead-free (LF)
Installation Tips
- Install at the main water inlet after the water meter.
- Select horizontal or vertical orientation based on available space.
- Ensure access to a drain connection for backwashing.
- Run an initial backwash after installation.
- Backwash every 6 months, or more often if sediment levels are high.
Technical Data
| R1 RSF* Lead-Free (LF) — No Pressure Reducer | 3/4" | 1" | 1-1/4" |
|---|---|---|---|
| Connection width (DN) | 20 | 25 | 32 |
| Flow rate @ Δp = 0.2 bar (2.9 psi) | 3.4 m³/h (14.9 gpm) | 3.7 m³/h (16.3 gpm) | 4.1 m³/h (18.0 gpm) |
| Flow rate @ Δp = 0.5 bar (7.3 psi) | 5.4 m³/h (23.8 gpm) | 6.0 m³/h (26.4 gpm) | 6.7 m³/h (29.5 gpm) |
| Filter mesh size | 90 µm | ||
| Operating pressure (min./max.) | 2.5–16 bar (36.2–232 psi) | ||
| Dimensions (H × W) | 352 × 186 mm | 352 × 184 mm | 352 × 203 mm |
| Order No. | 125596638 | 125596639 | 125596640 |
*RSF = Backwash filter.
